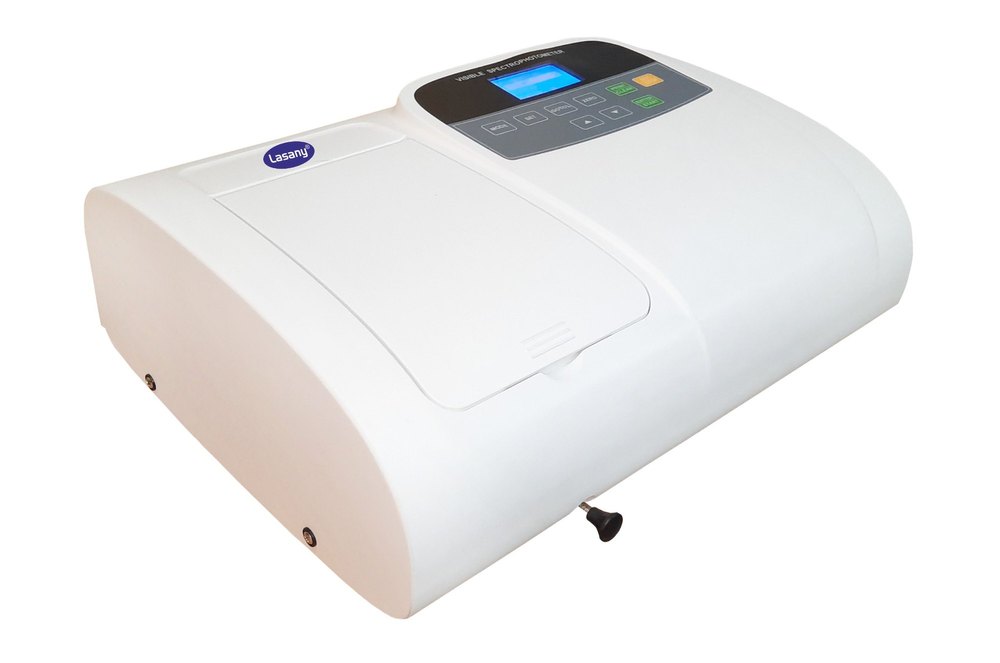

Lasany LI-730 Spectrophotometer

LIGHT SOURCE

Light Source	Tungsten Halogen Lamp
Diffraction Grating (lines/mm)	1200
Switching of Light Source	Automatic
Wavelength Setting And Scanning	Automatic

TYPE

Type of Spectrophotometer	VISIBLE
Type of Optical System	Single Beam
Monochromator Type	Holographic Grating
Detector Type	Photodiode
Spectral Bandwidth Type	Fixed Bandwidth

OPTICAL PERFORMANCE

Source Wavelength - Minimum	320 nanometer
Source Wavelength - Maximum	1000 nanometer
Resolution	0.2 nanometer
Wavelength Accuracy (+/-)	1 nanometer
Bandwidth (nm)	2.0
If variable band width, Specify the incremental step value(mm)	NA
Scanning Speed (nm/min)	3600
Focal length (mm)	100 to 149
Photometric measurement modes	Transmittance,Concentration (Wavelength, time)
Photometric Absorbance (Max) (Abs) (+/-)	3
Photometric Absorbance Accuracy (Max) (+/-)	0.004
Photometric Transmittance (Max) (+/-)	100 percent
Photometric Transmittance Accuracy (Max) (+/-)	0.5 percent
Photometric Reflectance (Max) (+/-)	0 percent
Photometric Reflectance Accuracy (Max) (+/-)	0 percent
Stray Light Correction	Automatic
Baseline Correction	Automatic

 GENERIC

Display	In-built display
Display type	LCD with Backlight
Display Size	2.5 inch
Test result printing	Through external printer
If inbuilt printer, Type of printer	N/A
Suitable software for connecting PC & Printer	Yes
Connectivity	USB
Internal storage(GB)	0
Sample switching/selection	Automatic
Capacity of Sample holder / Sample Carousel	1
Mximum Path Length of sample	50 millimeter
Number of Cuvettes supplied-inclusive in the scope of supply	10
Power Supply	230 V ± 10, 50 Hz
Spares and Consumables inclusive in the scope of supply	No
List of Items and Quantity of each item included in the offer	-

OPERATING CONDITIONS

Minimum Operating Temperature	5 degree Celsius
Maximum Operating Temperature	45 degree Celsius
Operating Humidity (RH) (%) at 40 degree C	85 percent

 Certification

Availability of UL/CE Certification as per EN 61010-1:2010 Safety requirements for electrical equipment for measurement, control, and laboratory use General requirements	Yes
Conformance to EMC/EMI as per EN 61326-1:2013 Electrical equipment for measurement, control and laboratory use	Yes
Availability of Test Reports from Central Govt / NABL approved / ILAC acredited lab to prove conformity to the specification	No
If yes test report to furnished,to the buyer on demand	N/A
Test Report number and date	-
Name and address of the Lab	-
