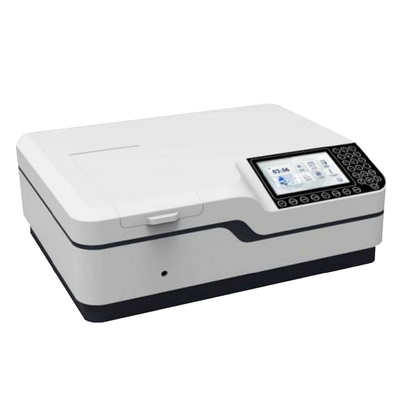

LI-3001 Double Beam UV - VISIBLE Spectrophotometer

LIGHT SOURCE

Light Source	Xenon Flash
Diffraction Grating (lines/mm)	1200
Switching of Light Source	Automatic
Wavelength Setting And Scanning	Automatic

TYPE

Type of Spectrophotometer	UV - VISIBLE
Type of Optical System	Double Beam
Monochromator Type	Holographic Grating
Detector Type	Photodiode
Spectral Bandwidth Type	Fixed Bandwidth

OPTICAL PERFORMANCE

Source Wavelength - Minimum	190 nanometer
Source Wavelength - Maximum	900 nanometer
Resolution	1.5 nanometer
Wavelength Accuracy (+/-)	1.5 nanometer
Bandwidth (nm)	1
If variable band width, Specify the incremental step value(mm)	0.5
Scanning Speed (nm/min)	50
Focal length (mm)	50 to 99
Photometric measurement modes	Transmittance,Absorbance,Concentration (Wavelength, time),Reflectance
Photometric Absorbance (Max) (Abs) (+/-)	1.5
Photometric Absorbance Accuracy (Max) (+/-)	0.001
Photometric Transmittance (Max) (+/-)	50 percent
Photometric Transmittance Accuracy (Max) (+/-)	0.1 percent
Photometric Reflectance (Max) (+/-)	0.1 percent
Photometric Reflectance Accuracy (Max) (+/-)	0.1 percent
Stray Light Correction	Automatic
Baseline Correction	Automatic

 GENERIC

Display	In-built display
Display type	LCD touchscreen
Display Size	7 inch
Test result printing	Through external printer
If inbuilt printer, Type of printer	N/A
Suitable software for connecting PC & Printer	Yes
Connectivity	USB
Internal storage(GB)	32
Sample switching/selection	Automatic
Capacity of Sample holder / Sample Carousel	1
Mximum Path Length of sample	0.5 millimeter
Number of Cuvettes supplied-inclusive in the scope of supply	10
Power Supply	230 V ± 10, 50 Hz
Any other features/accesories covered in scope of supply	NA
Spares and Consumables inclusive in the scope of supply	No
List of Items and Quantity of each item included in the offer	1

OPERATING CONDITIONS

Minimum Operating Temperature	10 degree Celsius
Maximum Operating Temperature	45 degree Celsius
Operating Humidity (RH) (%) at 40 degree C	80 percent

 Certification

Availability of UL/CE Certification as per EN 61010-1:2010 Safety requirements for electrical equipment for measurement, control, and laboratory use General requirements	Yes
Conformance to EMC/EMI as per EN 61326-1:2013 Electrical equipment for measurement, control and laboratory use	Yes
Availability of Test Reports from Central Govt / NABL approved / ILAC acredited lab to prove conformity to the specification	Yes
If yes test report to furnished,to the buyer on demand	N/A
Test Report number and date	NA
Name and address of the Lab	NA
