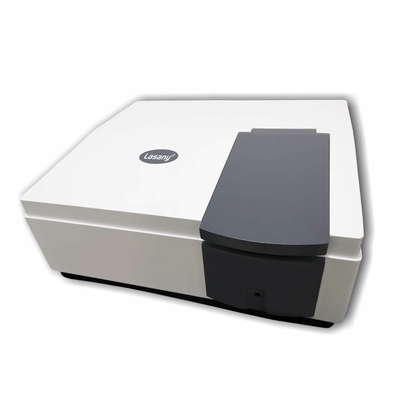

LI-2702 Double Beam UV - VISIBLE Spectrophotometer

LIGHT SOURCE

Light Source	Halogen Lamp,Deuterium Lamp,Tungsten Halogen Lamp
Diffraction Grating (lines/mm)	1200
Switching of Light Source	Automatic
Wavelength Setting And Scanning	Automatic

TYPE

Type of Spectrophotometer	UV - VISIBLE
Type of Optical System	Double Beam
Monochromator Type	Holographic Grating
Detector Type	Photodiode
Spectral Bandwidth Type	Fixed Bandwidth

OPTICAL PERFORMANCE

Source Wavelength - Minimum	190 nanometer
Source Wavelength - Maximum	1100 nanometer
Resolution	0.3 nanometer
Wavelength Accuracy (+/-)	0.5 nanometer
Bandwidth (nm)	1
If variable band width, Specify the incremental step value(mm)	NA
Scanning Speed (nm/min)	3000
Focal length (mm)	200 to 249
Photometric measurement modes	Transmittance,Absorbance,Concentration (Wavelength, time)
Photometric Absorbance (Max) (Abs) (+/-)	3
Photometric Absorbance Accuracy (Max) (+/-)	0.001
Photometric Transmittance (Max) (+/-)	100 percent
Photometric Transmittance Accuracy (Max) (+/-)	0.005 percent
Photometric Reflectance (Max) (+/-)	0 percent
Photometric Reflectance Accuracy (Max) (+/-)	0 percent
Stray Light Correction	Automatic
Baseline Correction	Automatic

 GENERIC

Display	Through PC
Display type	NA
Display Size	5 inch
Test result printing	Through external printer
If inbuilt printer, Type of printer	N/A
Suitable software for connecting PC & Printer	Yes
Connectivity	USB,RS 232
Internal storage(GB)	32
Sample switching/selection	Automatic
Capacity of Sample holder / Sample Carousel	2
Mximum Path Length of sample	10 millimeter
Number of Cuvettes supplied-inclusive in the scope of supply	10
Power Supply	230 V ± 10, 50 Hz
Any other features/accesories covered in scope of supply	Software, Manual
Spares and Consumables inclusive in the scope of supply	No
List of Items and Quantity of each item included in the offer	cuvettes

OPERATING CONDITIONS

Minimum Operating Temperature	5 degree Celsius
Maximum Operating Temperature	45 degree Celsius
Operating Humidity (RH) (%) at 40 degree C	80 percent

 Certification

Availability of UL/CE Certification as per EN 61010-1:2010 Safety requirements for electrical equipment for measurement, control, and laboratory use General requirements	No
Conformance to EMC/EMI as per EN 61326-1:2013 Electrical equipment for measurement, control and laboratory use	No
