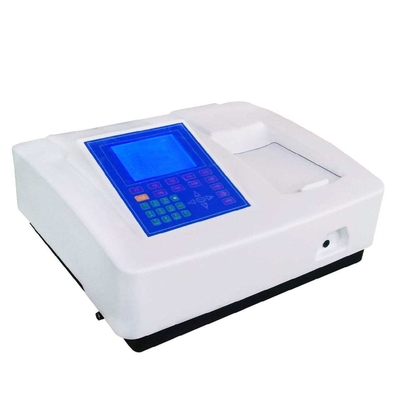

LI-2800 LASANY Split Beam UV - VISIBLE Spectrophotometer

LIGHT SOURCE

Light Source	Halogen Lamp
Diffraction Grating (lines/mm)	600
Switching of Light Source	Automatic
Wavelength Setting And Scanning	Automatic

TYPE

Type of Spectrophotometer	UV - VISIBLE
Type of Optical System	Split Beam
Monochromator Type	Scanning grating
Detector Type	Silicon
Spectral Bandwidth Type	Variable Bandwidth

OPTICAL PERFORMANCE

Source Wavelength - Minimum	570 nanometer
Source Wavelength - Maximum	1100 nanometer
Resolution	0.002 nanometer
Wavelength Accuracy (+/-)	0.5 nanometer
Bandwidth (nm)	0.1
If variable band width, Specify the incremental step value(mm)	NA
Scanning Speed (nm/min)	3000
Focal length (mm)	50 to 99
Photometric measurement modes	Transmittance
Photometric Absorbance (Max) (Abs) (+/-)	0.5
Photometric Absorbance Accuracy (Max) (+/-)	0.4
Photometric Transmittance (Max) (+/-)	100 percent
Photometric Transmittance Accuracy (Max) (+/-)	0.2 percent
Photometric Reflectance (Max) (+/-)	100 percent
Photometric Reflectance Accuracy (Max) (+/-)	0.4 percent
Stray Light Correction	Automatic
Baseline Correction	Automatic

 GENERIC

Display	In-built display
Display type	LCD with Backlight
Display Size	5 inch
Test result printing	Through external printer
If inbuilt printer, Type of printer	N/A
Suitable software for connecting PC & Printer	N/A
Connectivity	USB
Internal storage(GB)	80
Sample switching/selection	Manual
Capacity of Sample holder / Sample Carousel	1
Mximum Path Length of sample	100 millimeter
Number of Cuvettes supplied-inclusive in the scope of supply	10
Power Supply	230 V ± 10, 50 Hz
Any other features/accesories covered in scope of supply	0
Spares and Consumables inclusive in the scope of supply	No
List of Items and Quantity of each item included in the offer	0

OPERATING CONDITIONS

Minimum Operating Temperature	10 degree Celsius
Maximum Operating Temperature	40 degree Celsius
Operating Humidity (RH) (%) at 40 degree C	80 percent

 Certification

Availability of UL/CE Certification as per EN 61010-1:2010 Safety requirements for electrical equipment for measurement, control, and laboratory use General requirements	Yes
Conformance to EMC/EMI as per EN 61326-1:2013 Electrical equipment for measurement, control and laboratory use	Yes
Availability of Test Reports from Central Govt / NABL approved / ILAC acredited lab to prove conformity to the specification	Yes
If yes test report to furnished,to the buyer on demand	N/A
Test Report number and date	0
Name and address of the Lab	0
