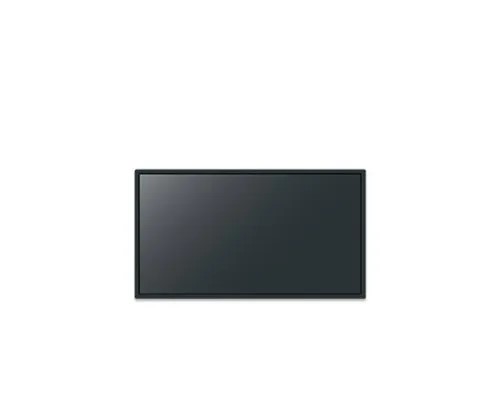

LG 5555TR3DK interactive panel

Display Type

LCD

Display Panel Diagonal size (mm)

1397

Width of The Effective Display Area of The Panel (mm)

1271

Height of The Effective Display Area of The Panel (mm)

774

Backlight Technology

LED

Display Resolution (Pixels)

3840X2160

Display Brightness (Nits)

440

Display Aspect Ratio

16:9

Touch interface

Touch sensitive as well as pen driven

Touch Technology

Infrared optical

Number of touch points (Number)

20

Response time (milli seconds)

8

Operating System Compatibility

ANDROID 11, WINDOWS

Number of Input HDMI ports

3

Number of USB 2.0 ports (Nos.)

1

Number of USB 3.0 ports (Nos.)

4

Number of Audio Input ports (Number)

1

Number of audio output ports (Nos.)

1

Number of RS-232 C ports (Nos.)

1

Number of RJ 45 ports (Nos.)

1

Number of VGA-IN ports (Number)

1

Number of VGA-OUT ports (Number)

0

Provision of in built speakers

Yes

Provision for wall mounting

Yes

Bluetooth connectivity

Yes

Wi-Fi connectivity

Yes

Number of electronic pen or stylus to be supplied with the board (Nos)

2

Details of software provided

ANDROID,32GB,4GB RAM

Power Supply Voltage in AC (Volts)

100-240

Power consumption (Watts)

170

Operating Temperature Range (degree celsius)

0 - 40

Operating Humidity (%)RH

10- 90

Installation Kit to be supplied alongwith the Panel

Yes

All connecting Cables and accessories to be supplied along with the Panel

Yes

BIS Registration under CRS of Meity

Yes

BIS Registration Number & its Validity

R-41231347

Availability of test reports from Central Govt /NABL / ILAC accredited Lab covering all the parameters

No

Test Report Number

NA

Test Report date

NA

Name of Test lab

NA

Address of the Test lab

NA
