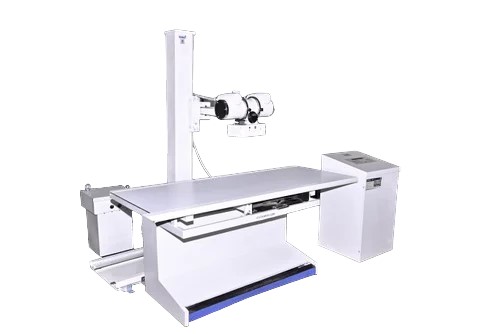

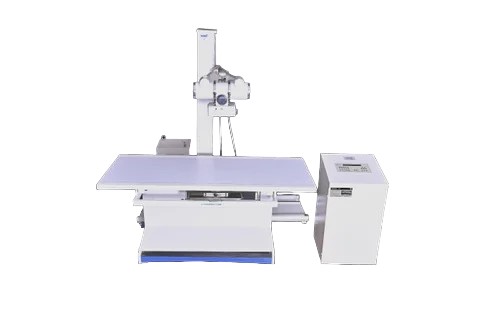

Vision 300MA X Ray Machine

Standards

Conformity to Certification	CDSCO/AERB
Certification number and date	MH-33187-MF-XRE-001 07/10/2020
Type test approval from AREB required	Yes
AREB approval certificate number of Particular Model	99-TA-771 07/10/2020
Confirmity to manufacturing standards	ISO 13485
Conformity to safety standards	IEC 60601-2-54 or BIS equivalents

Performance Parameters

Purpose	For Radiographic examinations
Type of frequency generator	High frequency generator
Frequency generator output in kW	100
KVP range in KV	40 -125
Current output	300 mA or more at 100 kV
Provision of Anatomical programming radiography	Yes
Over loading protection	Yes
X-ray tube positioning	Floor Mount Tube stand
X ray tube should be high speed rotating anode and must have dual focus	Yes
Tube rotation in degree	120
Size of large focal spot in mm	Upto 2 mm
Size of small focal spot in mm	Upto 1 mm
Anode Rotation Speed (minimal) per minute	2800
Permanent Filtration	0.9 mm Al / 75 kV
Anode heat storage capacity (min)	140 kHU or more
Heat dissipation rate in HU/Sec	600
Automatic exposure control device provided	Yes
Maximum Exposure time in milli second	upto 15
Digital display for KVP & mAs provided	Yes
Range of tube movements in vertical planes in cm	150
Range of tube movements in longitudinal in cm	150
Range of tube movements in lateral planes in cm	150
Electromagnetic brakes with fully counter balanced mechanism for tube movement	No
Facility to display tube angulation	Yes
Centering devices to be provided	Yes
Maximum source to image distance (SID) in vertical position in cm	150
Maximum source to image distance (SID) in horizontal position in cm	100
Collimeter rotation in degree	±180
Multileaf collimator having halogen lamp/bright light source, with auto shut off provision of the light, should be available	Yes
Minimum intensity of light field lamp	≥100 lux
Full coverage size at a 100 cm SID(collimeter size) with ± 5 percent tolerances	430 x 430
Type of table provided	5 Positioning manual table
Table top material with low attenuation and scratch resistant surface	Melamine
Table Length in mm with ± 1 percent tolerances	1800
Table Width in mm with ± 1 percent tolerances	600
Table Height in mm with ± 1 percent tolerances	650
System should have longitudinal and horizontal table top movements	Not applicable
Table should have provision for lateral imaging, without patient movement	No
Range of movements for the table	Transverse movements of + 10cm or more & Longitudinal movements+ 40 cm with electromagnetic brakes
Facilities of height adjustments	No
Maximum Patient weight supported by table in kg	200
Foot switches for adjusting longitudinal/side to side movements, locking, and light adjustment	Yes
Movable Grid with grid ratio	10:1 or more
Anti-collision and safety devices provided	No
Counterbalanced, adjustable height, wall and floor mounted, vertical Bucky	Yes
SID range of radiographic application including chest radiography in mm	1000 to 1800
Provision of doing chest radiography without grid	No
Power supply	Three Phase AC ( 380-440 V,50/60 Hz)
Lead lining for doors	Yes
Number of installations of the X- ray machines in Central /State/PSU Govt Hospitals (Note: Seller should furnish a performance certificate of the device to the buyer if demanded after placement of order)	>3
OEM and Reseller (if supplier is re-seller) shall ensure uninterrupted availability of all spares for 10 years	Yes
Availability of toll free facility for technical support maintened by OEM or authorized agencies	No
User/Technical/Maintenance manuals to be supplied in English in hard and soft copy	Yes
Demonstration of equipment and training to be provided after completing supplies before acceptance	Yes
