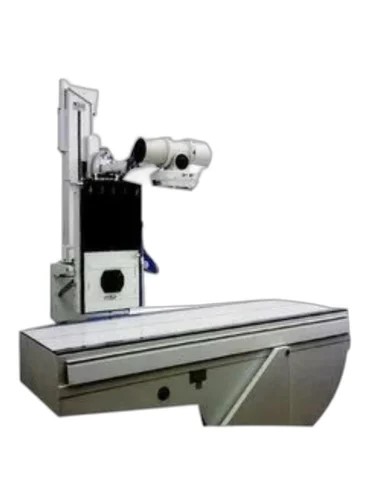

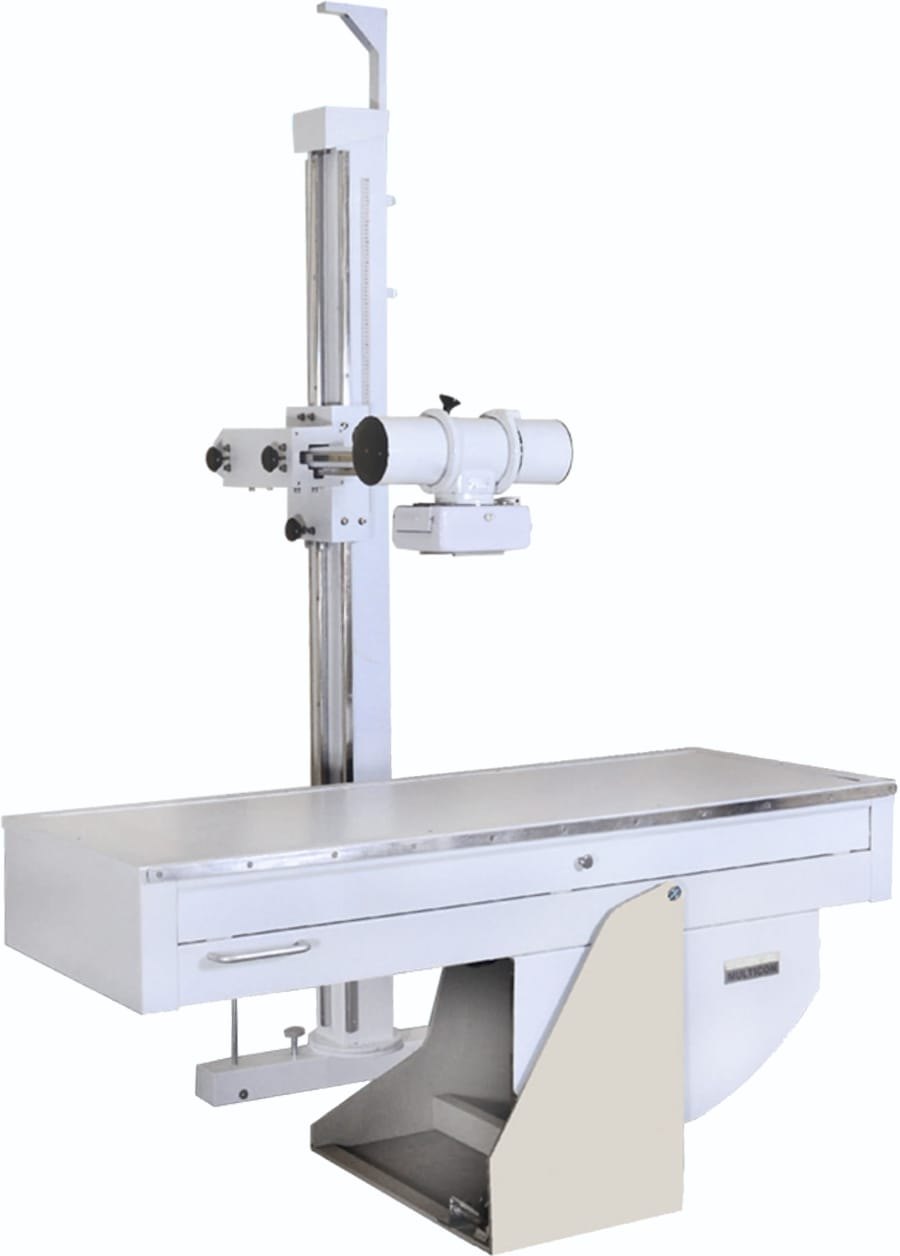

VISION 500mA X Ray Machine

Conformity to Certification

CDSCO/AERB,BIS

Certification number and date

99-TA-773 dt 19.05.2021

Type test approval from AREB required

Yes

AREB approval certificate number of Particular Model

99-TA-773 dt 19.05.2021

Confirmity to manufacturing standards

ISO 13485

Conformity to safety standards

IEC 60601-2-54 or BIS equivalents

Purpose

For Radiographic examinations

Type of frequency generator

High frequency generator

Frequency generator output in kW

50

KVP range in KV

40 -125

Current output

300 mA or more at 100 kV

Provision of Anatomical programming radiography

Yes

Over loading protection

Yes

X-ray tube positioning

Floor Mount Tube stand

X ray tube should be high speed rotating anode and must have dual focus

Yes

Tube rotation in degree

120

Size of large focal spot in mm

Upto 2 mm

Size of small focal spot in mm

Upto 1 mm

Anode Rotation Speed (minimal) per minute

2800

Permanent Filtration

0.9 mm Al / 75 kV

Anode heat storage capacity (min)

140 kHU or more

Heat dissipation rate in HU/Sec

670

Automatic exposure control device provided

Yes

Maximum Exposure time in milli second

upto 10

Digital display for KVP & mAs provided

Yes

Range of tube movements in vertical planes in cm

150

Range of tube movements in longitudinal in cm

150

Range of tube movements in lateral planes in cm

150

Electromagnetic brakes with fully counter balanced mechanism for tube movement

Yes

Facility to display tube angulation

Yes

Centering devices to be provided

Yes

Maximum source to image distance (SID) in vertical position in cm

180

Maximum source to image distance (SID) in horizontal position in cm

110

Collimeter rotation in degree

±180

Multileaf collimator having halogen lamp/bright light source, with auto shut off provision of the light, should be available

Yes

Minimum intensity of light field lamp

≥150 lux

Full coverage size at a 100 cm SID(collimeter size) with ± 5 percent tolerances

430 x 430

Type of table provided

Floating table top

Table top material with low attenuation and scratch resistant surface

Carbon fiber

Table Length in mm with ± 1 percent tolerances

2360

Table Width in mm with ± 1 percent tolerances

800

Table Height in mm with ± 1 percent tolerances

760

System should have longitudinal and horizontal table top movements

Yes

Table should have provision for lateral imaging, without patient movement

Yes

Range of movements for the table

Transverse movements of + 10cm or more & Longitudinal movements+ 40 cm with electromagnetic brakes

Facilities of height adjustments

No

Maximum Patient weight supported by table in kg

300

Foot switches for adjusting longitudinal/side to side movements, locking, and light adjustment

Yes

Movable Grid with grid ratio

10:1 or more

Anti-collision and safety devices provided

Yes

Counterbalanced, adjustable height, wall and floor mounted, vertical Bucky

Yes

SID range of radiographic application including chest radiography in mm

1000 to 1800

Provision of doing chest radiography without grid

Yes

Power supply

Three Phase AC ( 380-440 V,50/60 Hz)

Lead lining for doors

Yes

Number of installations of the X- ray machines in Central /State/PSU Govt Hospitals (Note: Seller should furnish a performance certificate of the device to the buyer if demanded after placement of order)

>3

OEM and Reseller (if supplier is re-seller) shall ensure uninterrupted availability of all spares for 10 years

Yes

Availability of toll free facility for technical support maintened by OEM or authorized agencies

Yes

User/Technical/Maintenance manuals to be supplied in English in hard and soft copy

Yes

Demonstration of equipment and training to be provided after completing supplies before acceptance

Yes
