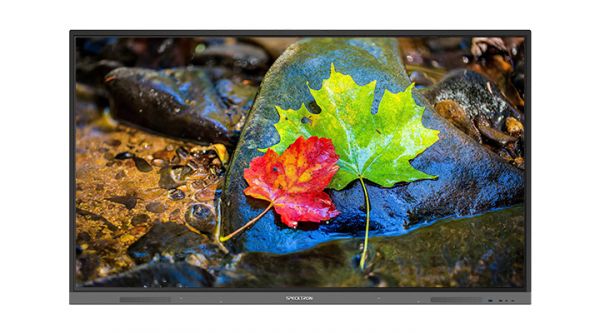

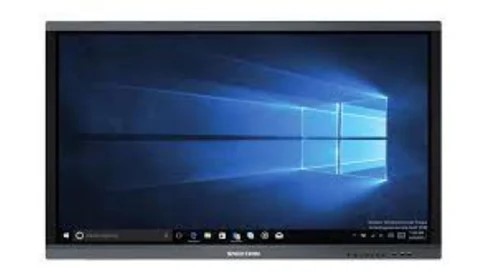

Specktron UDX-86C interactive panels

VIEW LESS

Specification

Display Type	LCD
Display Panel Diagonal size (mm)	86
Width of The Effective Display Area of The Panel (mm)	1894.04
Height of The Effective Display Area of The Panel (mm)	1065.96
Backlight Technology	LED
Display Resolution (Pixels)	3840X2160
Display Brightness (Nits)	330
Display Aspect Ratio	16:9
Touch interface	Touch sensitive as well as pen driven
Touch Technology	Infrared optical
Number of touch points (Number)	10
Response time (milli seconds)	8
Operating System Compatibility	i7/8g/8gb/256SSD/1TB
Number of Input HDMI ports	2
Number of USB 2.0 ports (Nos.)	4
Number of USB 3.0 ports (Nos.)	1
Number of Audio Input ports (Number)	1
Number of audio output ports (Nos.)	0
Number of RS-232 C ports (Nos.)	1
Number of RJ 45 ports (Nos.)	1
Number of VGA-IN ports (Number)	1
Number of VGA-OUT ports (Number)	1
Provision of in built speakers	Yes
Provision for wall mounting	Yes
Bluetooth connectivity	Yes
Wi-Fi connectivity	Yes
Number of electronic pen or stylus to be supplied with the board (Nos)	2
Details of software provided	Note ,Windows10pro
Power Supply Voltage in AC (Volts)	100-240
Power consumption (Watts)	500
Operating Temperature Range (degree celsius)	0°C to 40°C
Operating Humidity (%)RH	10% to 90%
Installation Kit to be supplied alongwith the Panel	Yes
All connecting Cables and accessories to be supplied along with the Panel	Yes
BIS Registration under CRS of Meity	Yes
BIS Registration Number & its Validity	R-4119415816/6/20233
Availability of test reports from Central Govt /NABL / ILAC accredited Lab covering all the parameters	Yes
Test Report Number	R-41194158
Test Report date	28/03/2022
Name of Test lab	BIS
Address of the Test lab	New Delhi
On Site OEM Warranty (Year)	3
