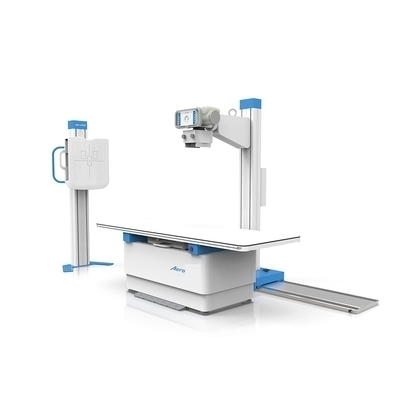

GEMTRACK GT-DRS001 Digital Radiography

Conformity to standards

US FDA,AERB

Certification Number and date

CE024928 dtd 22.11.2021

AREB type approval for particular model

Yes

AERB Cerificate Number and date for model

MH-24658-SU-XRE-001 dtd 05.09.2022

Confirmity to Manufactures Quality Certifications

ISO 9001 & ISO 1348

Conformity to Safety Standards

IEC 60601-2-54 or equivalent BIS

UMDNS Code and names

18-430

Scope of Supply

Digital Radiographic system with flat panel detector

Type of table

Floating Top Type

Type of table movement

Motorized

No of movements of Table

4 Way

Portability of table

No

Longitudinal Movement(with tolerance ± 10%)

±50

Lateral movement (with tolerance ± 10%)

±15

Length x Width (± 5%)

210 x 70

X Ray density

< 1 mm A I

Minimum and maxi,um adjustable heights (± 10%)

Not applicable

Load bearing capacity of table in kg

200 or more

Type of Table bucky movement

Not Available

Bucky rotatable

Yes

Size in inches

17x17

AEC

3 Field or higher

Grid Ratios

10:1 or higher

Lines in mm

103

Longitudinal travel

Manual

Type

Manual vertical Bucky Stand

Sizes in inches

17x17

A E C

3 Field or higher

Movable grid with Grid Ratios

10:1 or higher

Line in inches

103

Tilt

No

Radiography Mode

Digital

Number of detectors

Dual

Detector Material

Cesium Iodide

Detector Size

17 X 17 and 17 x 17

Matrix size

3kx3k

Pixel size in µm

100

Grey Scale resolution, bits/pixel

14 or better

DQE at 0 LP/mm

65% or more

Image preview time in seconds

5

Control panel

Microprocessor controlled

Automatic parameter selection

Yes

Control panel entry

Alphanumeric key board

Virtual grid software

Yes

Grid removable

No

Anatomic specific post processing

Yes

" High Frequency X-ray Generator power in Kw "

50 Kw

Maximum Ma at 100 KVP

600

Focal spot

0.6 and 1.2

Heat Capcity ,KHU

300-400

"Control panel and x ray tube "

Yes

Post Processing Features

zoom, contrast and brightness, adjustment, panning annotate, mark and reporting

Automatic tube positioning

No

Tube mounted x ray control

Yes

Type of suspension

Floor Mounted

Collimator Type

Manual

Monitor size in inches

19

Processor

i 5

RAM in GB

4

HDD In GB

1 TB

Dicom compatibility of work station

Yes

The work station should be fully network ready and it should transfer images and patient data from and to hospital network using LAN connectivity or wireless LAN

Yes

work station integrated with system

Yes

work station with advance measurement tool should be provided

Yes

DICOM Printing software to be provided

Yes

Patient study on film

Yes

Hand grips

Yes

Foot switches for adjusting longitudinal/side to side movements, locking, and light adjustment

Yes

Patient fixing belts and compression device (for performing excretory urography, etc)

Yes

Stitching Hardware And Software

Yes

Integration

DICOM 3.0 storage SOP Classes

DAP Meter supplied

No

Lead Apron

Yes

Light weight ‘zero lead’ radiation protection aprons provided

No

Lead Aprons - Full body and Skirt type

2 no each (0.5pb)

Thyroid shields supplied

Yes

Gonadsheet Male supplied

Yes

Gonad sheet Female supplied

Yes

Wall mounted stand for radiation protection aprons supplied

Yes

Lead glass window Supplied

Yes

Footsteps for the table supplied

Other Requirements

Power

440 v 50 hz 3 Phase 16 Ampls socket

Voltage stablizer servo controlled in KVA

50

Weight of system in kg

1200

Number of installations of the X- ray machines in Central /State/PSU Govt Hospitals( Note: Seller should supply a performace certificate of the device to the buyer if demanded after placement of order)

up to 3

Warranty (Option of comprehensive warranty is available through bidding only, which if opted will supersede normal warranty in the catalogue)

5

OEM/Reseller ( if supplied to reseller shall ensure uninterputed availabilty of all spares for 10 years)

Yes

Availability of toll free facility for technical support maintained by OEM or authorized agencies

Yes

Availability of toll free facility for technical support maintened by OEM or authorized agencies

Yes

User/Technical/Maintenance manuals to be supplied in English in hard and soft copy

Yes

Demonstration of equipment and training to be provided after completing supplies before acceptance

Yes

Copies of reports and certifications to be furnished to buyer on demand at time of supplies

Yes

QA, QC and other tests as per NABH shall be carried out by OEM or authorized agency of OEM

Yes

Copies of all calibration and test reports to be submitted at the time of Supply of Machine

Yes
